Four mast lifts adopt high-strength aluminum alloy profiles, featuring stable lifting, compact structure, light weight, attractive appearance and flexible mobility. According to different requirements, they can be designed as single mast, double mast, three mast or four mast models. Widely used in hotels, banks, halls, supermarkets and other indoor high-altitude maintenance scenarios.
PRODUCT DESCRIPTION
Aluminum lift is divided into single mast, double mast, three mast and four mast. The advantage of this lift is economical and convenient. It can be operated by only one person. And it’s small and light, which can reduce a lot of shipping cost than other lifts.
PRODUCT CUSTOMIZATION
We can customize products according to your requirements to make products more in line with your needs. Like color, brand, logo, nameplate, power, voltage and so on.
PRODUCT DETAILS

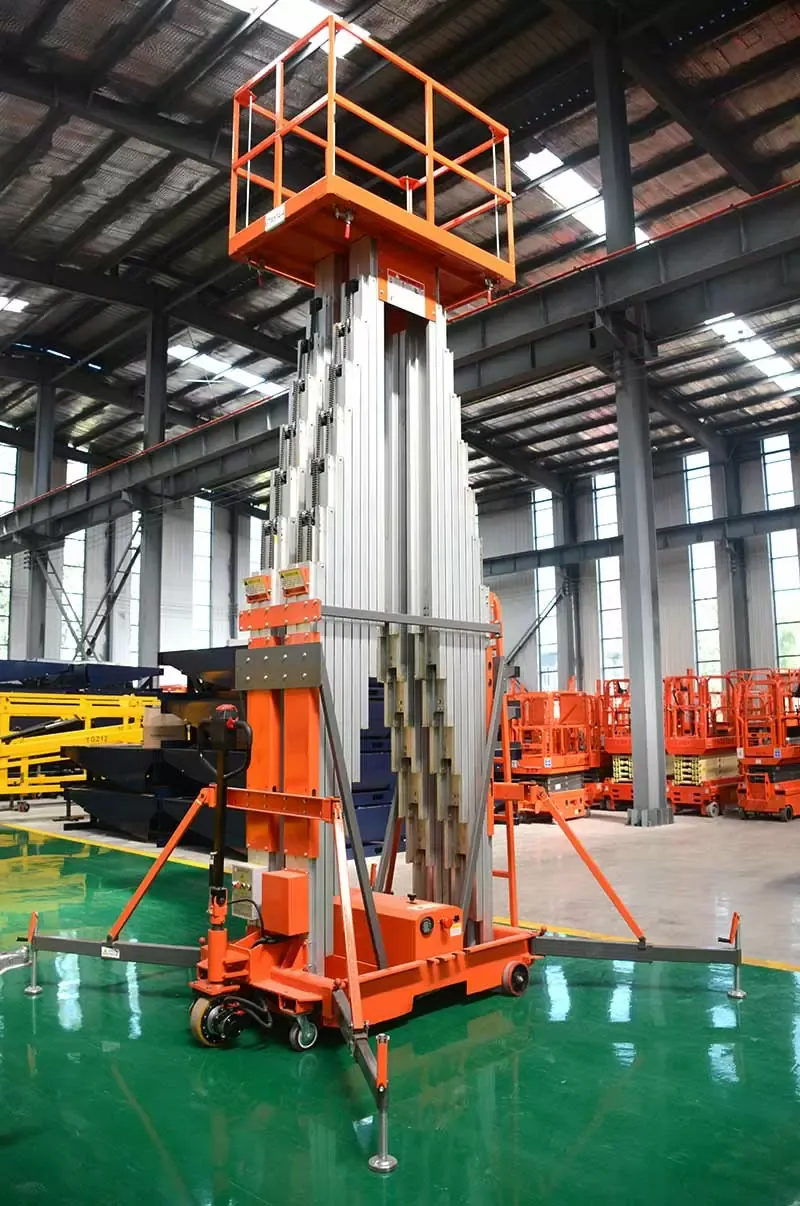

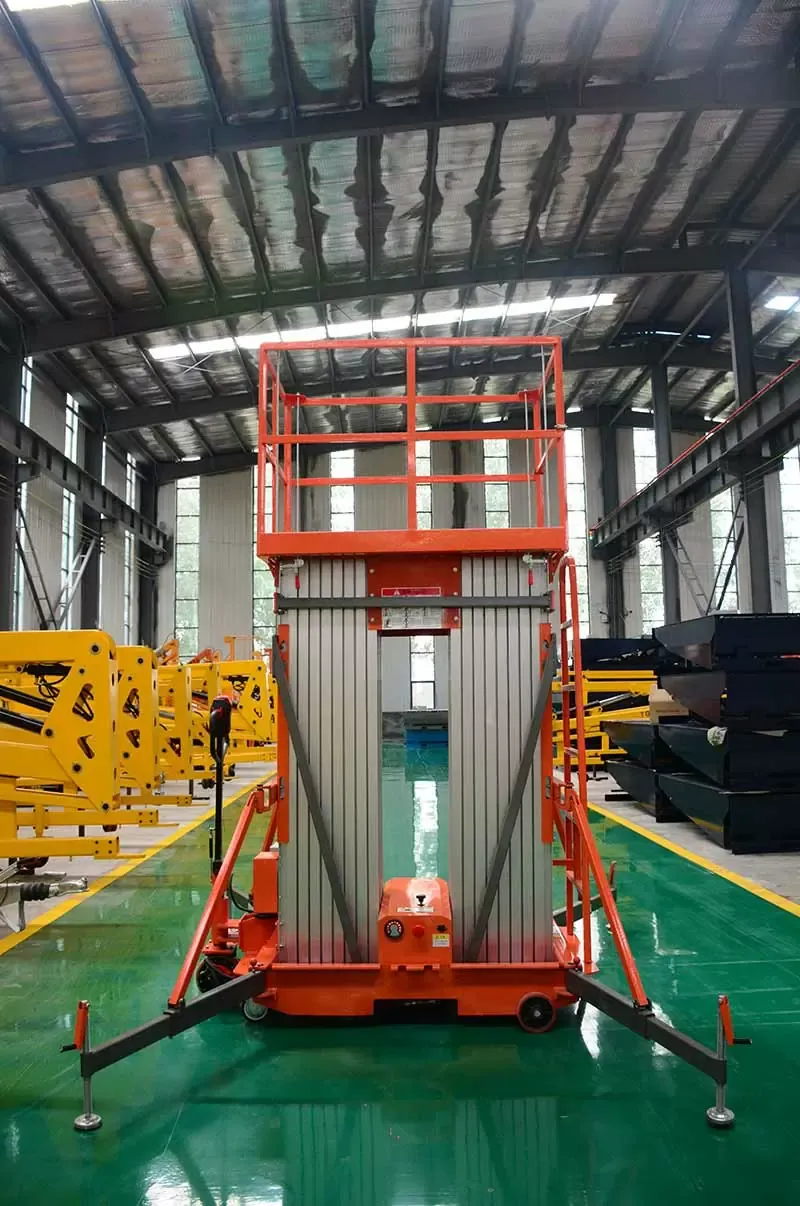

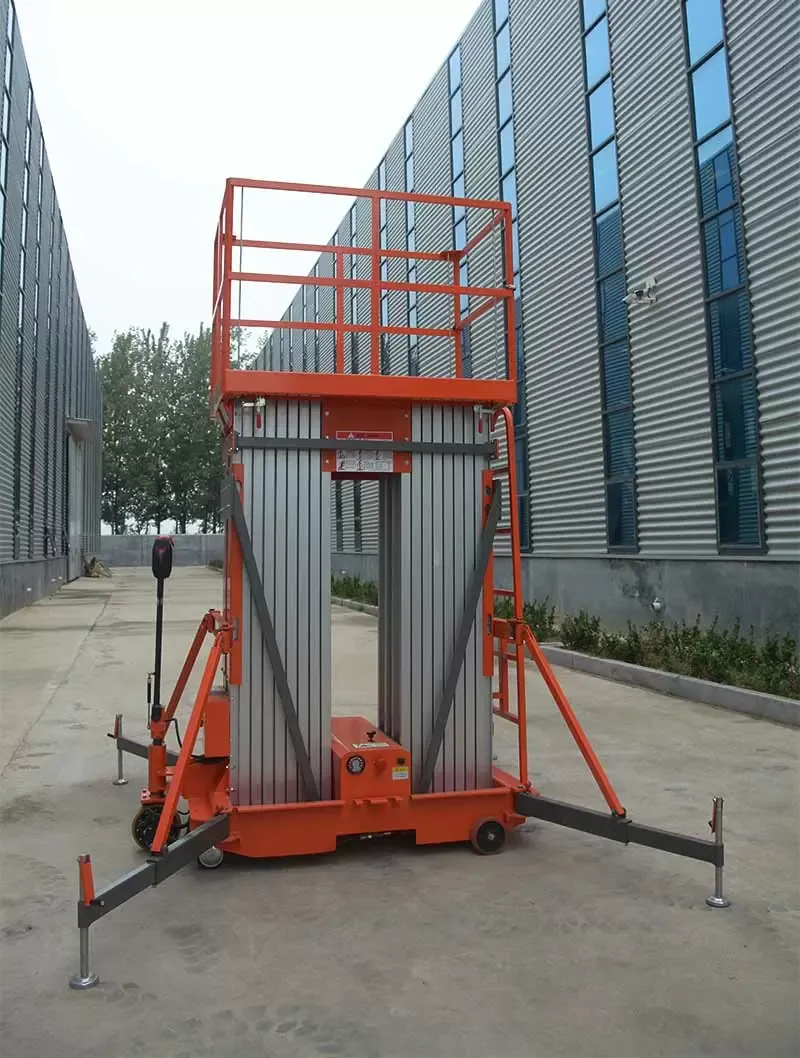

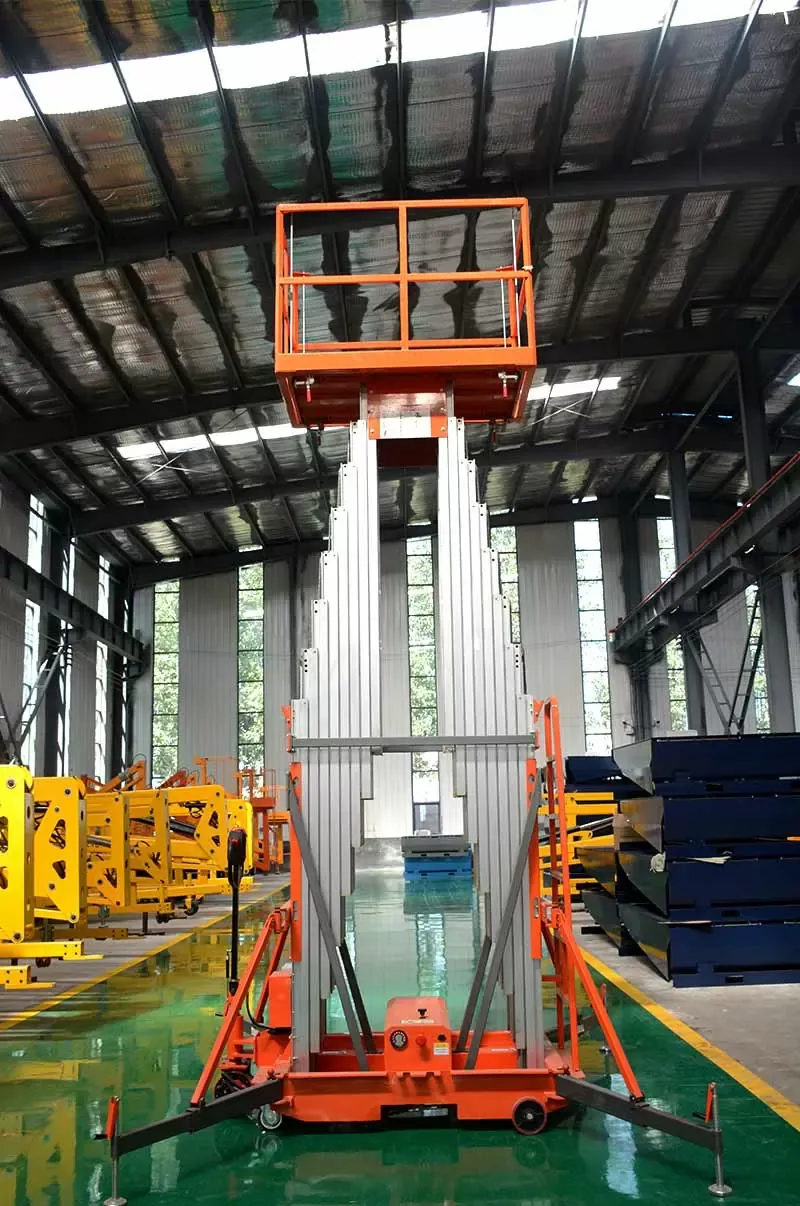

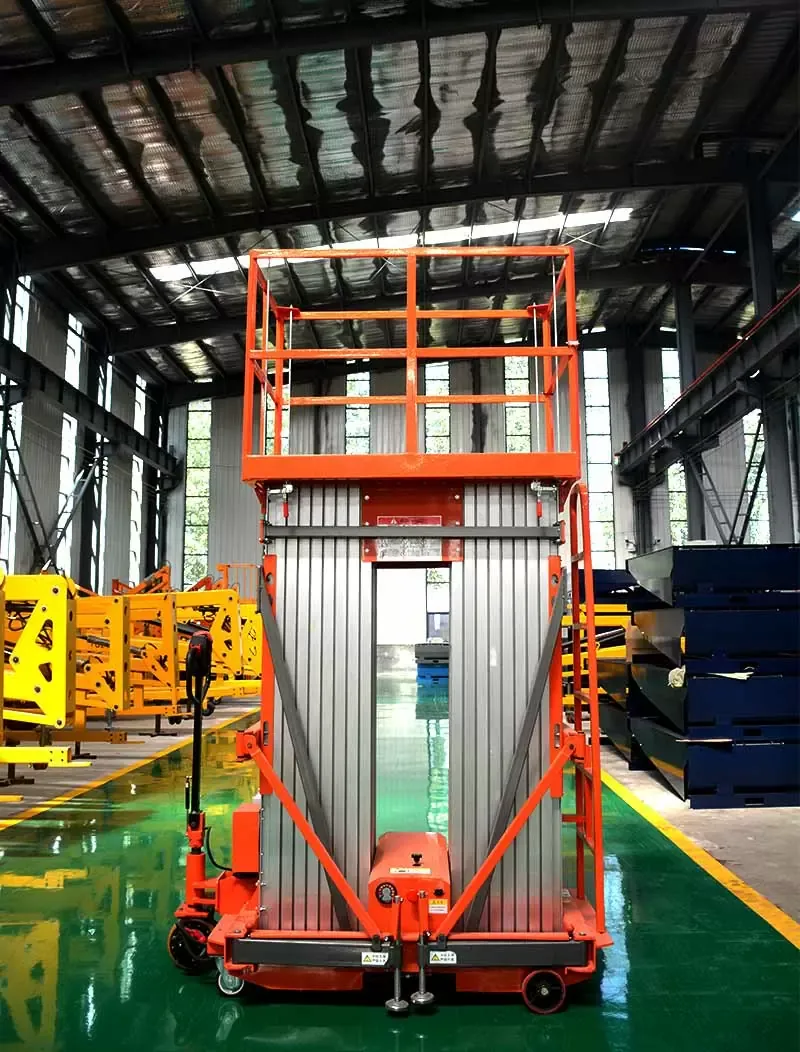

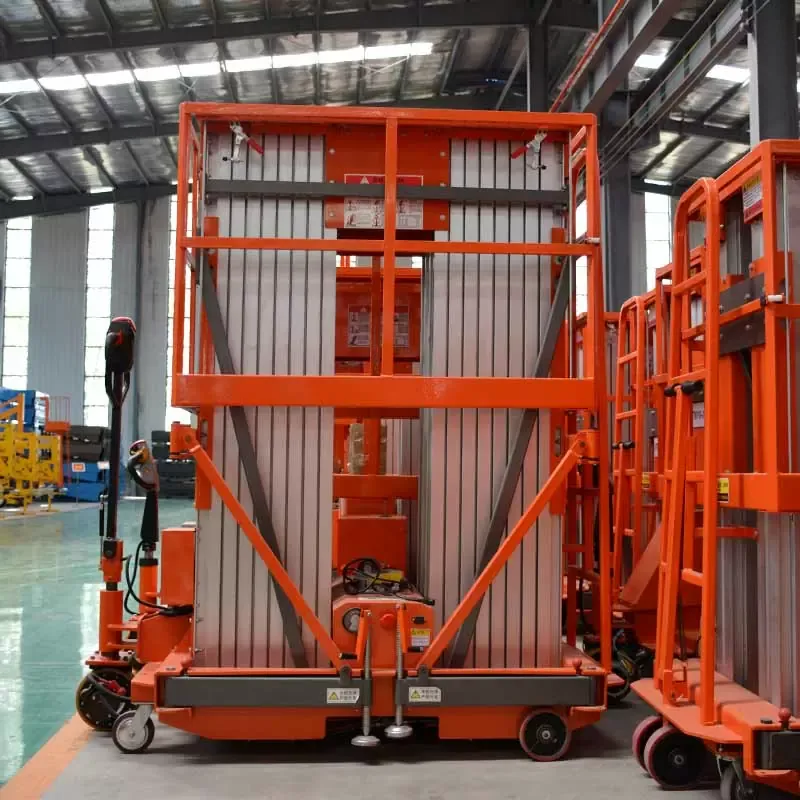

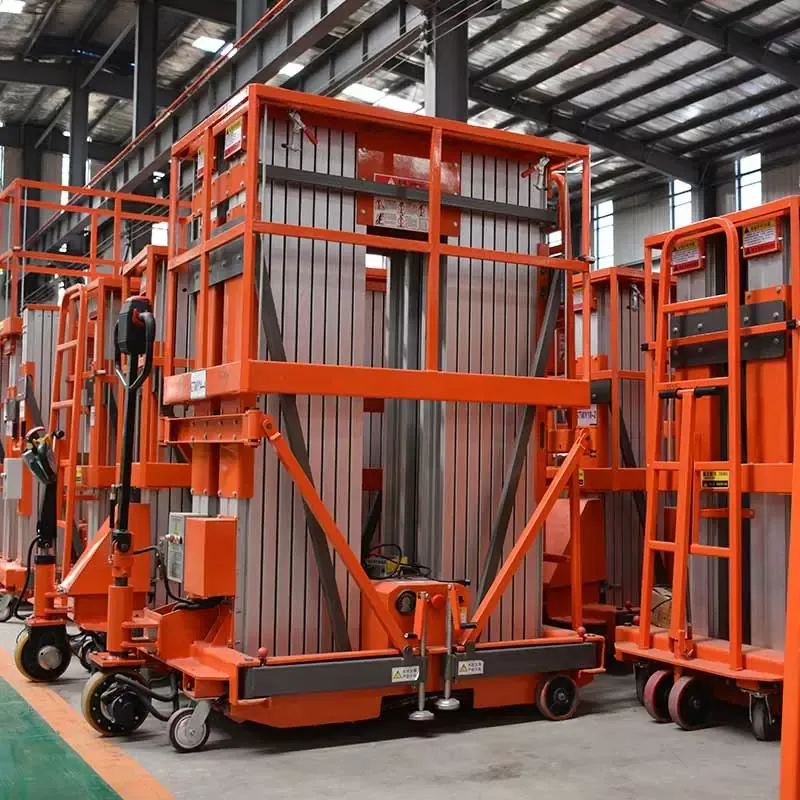

Four mast aluminum lift is a kind of small aerial work platform, which can go through the doors and use in room. The lifting height of it is 12-18m, and it can load 200kg. It’s small, light and easy to operate. It has universal wheels for easy movement.
High-strength high-quality aluminum alloy material.
Beautiful appearance, small sae and light weight, one person can drag and walk.
The platform itself wears safety steel ropes and safety protection devices.
The equipment is equipped with a remote control box,and the lifting can be controlled by the remote control.

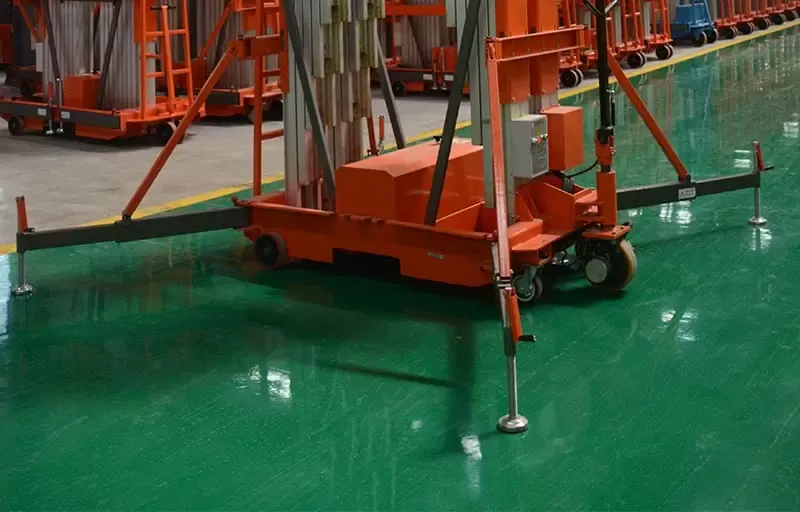

The equipment adopts polyurethane tires, which has low walking resistance,low sound and doesn’t hut the ground.
| Product Name | Model | Max Platform Height(M) | Max Working Height(M) | Platform Size(M) | Overall Dimension(M) | Outrigger Spread Dimension（M） | Machine Weight(KG) |
| Four Mast | LH12-200-4 | 12 | 14 | 1.57*0.9 | 1.9*1.2*2.0 | 2.95*2.58 | 1050 |
| LH14-200-4 | 14 | 16 | 1.57*0.9 | 1.9*1.2*2.3 | 2.95*2.58 | 1150 | |
| LH16-200-4 | 16 | 18 | 1.57*0.9 | 1.9*1.2*2.7 | 2.95*2.58 | 1250 | |
| LH18-200-4 | 18 | 20 | 1.57*0.9 | 2.0*1.4*2.96 | 3.05*2.78 | 1480 | |
| LH20-200-4 | 20 | 22 | 1.57*0.9 | 4.3*1.4*2.25 | 5.35*2.78 | 2600 |
