Mobile scissor lifts are applied in scenarios requiring heavy lifting capacity. Featuring a maximum working height of 85ft (26m) and load capacity up to 3000kg (6600lbs), they offer larger platform working areas and support heavier loads compared with boom lifts.
PRODUCT DESCRIPTION

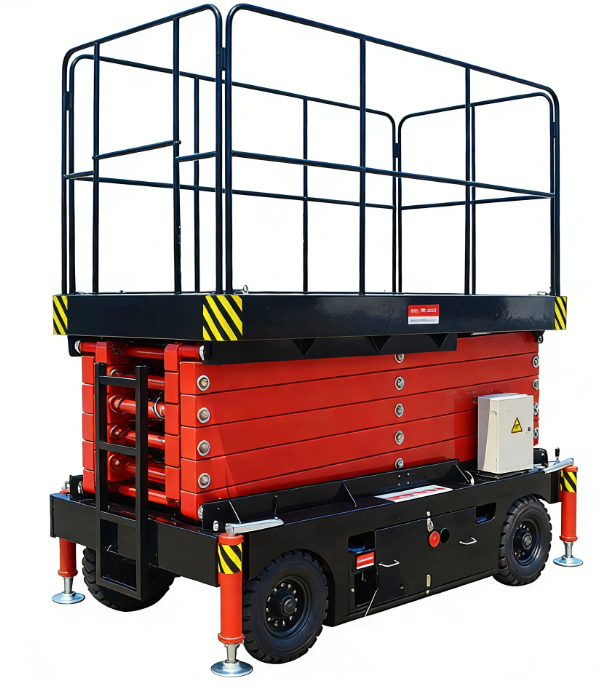

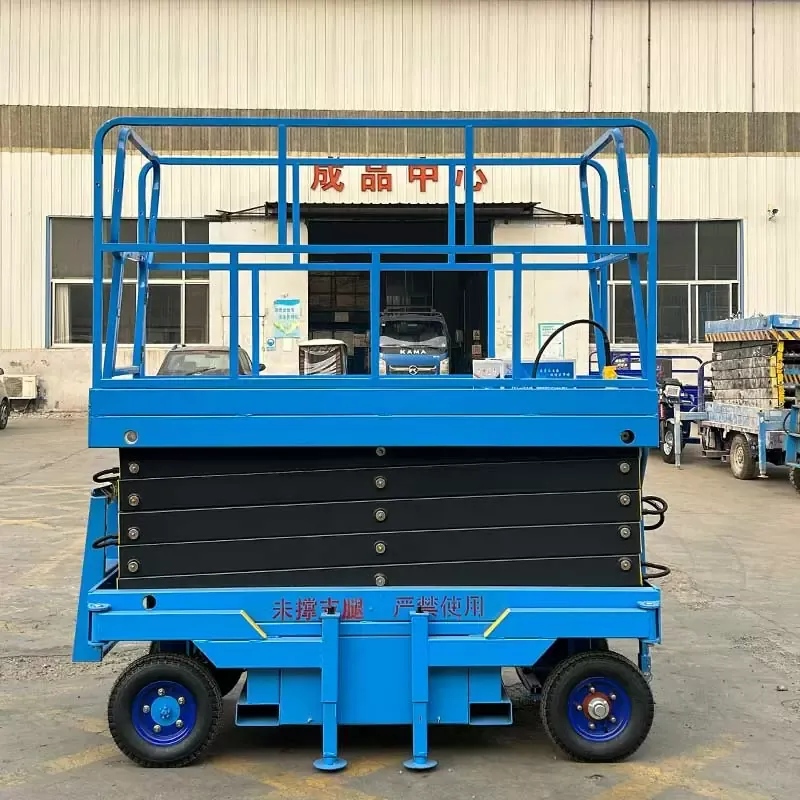

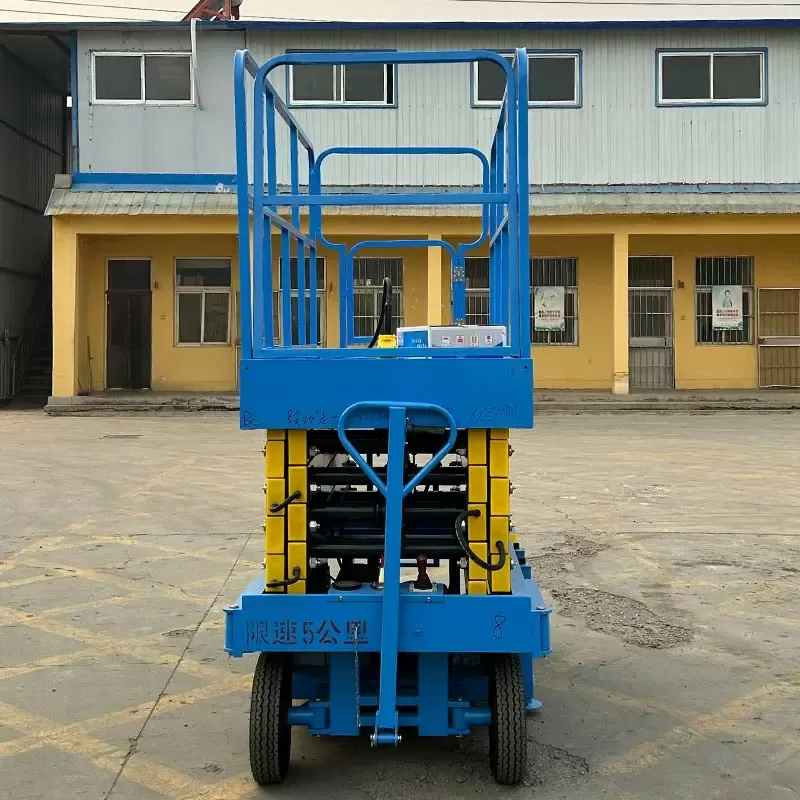

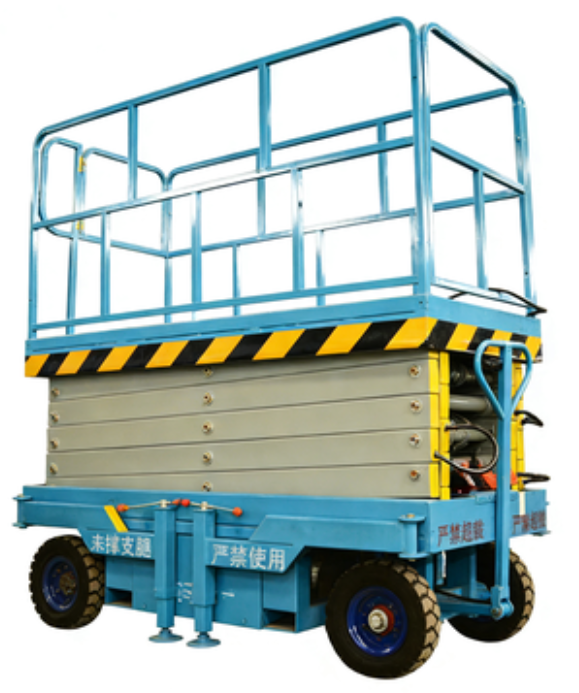

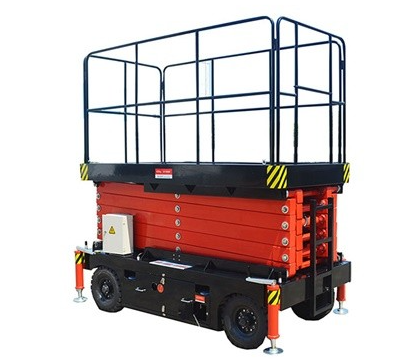

Mobile scissor lift has wide space platform and higher load capacity makes work range more larger and suitable for many people to work at the same time. Its platform is from 4m-26m, and load capacity is from 500-2000kg. This scissor lift makes aerial working more efficient and safer. Mainly used for station, dock, bridge, hall, workshop indoor and outdoor machinery installation, equipment repair, building maintenance.
PRODUCT CUSTOMIZATION

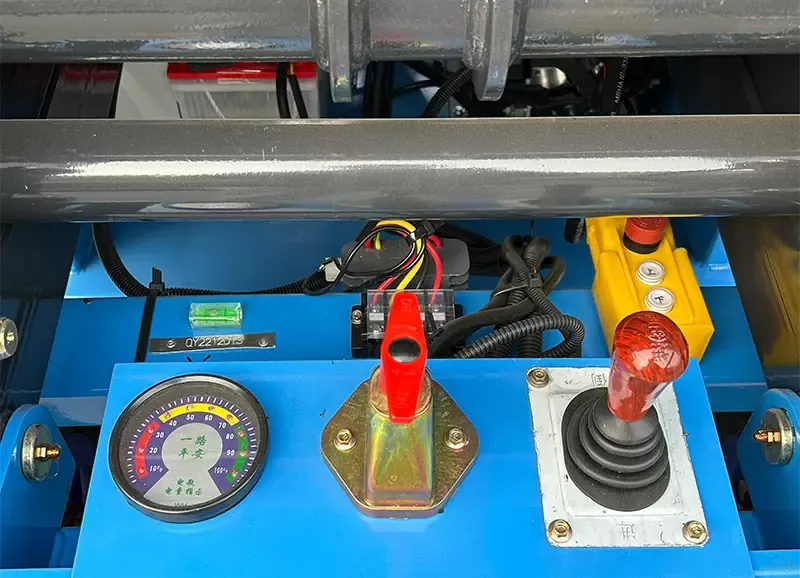

We can customize products according to your requirements to make products more in line with your needs. Like color, brand, logo, nameplate, power(AC,DC,Diesel), voltage, machine configuration(assisted walking, extended working platform, solid tires, pull-out type outriggers, hand-press pump, remote control, alarm light, overload alarm, incline alarm)
PRODUCT DETAILS
Normal lift height：4-18 meters，customized size from 20 meters to 26 meters

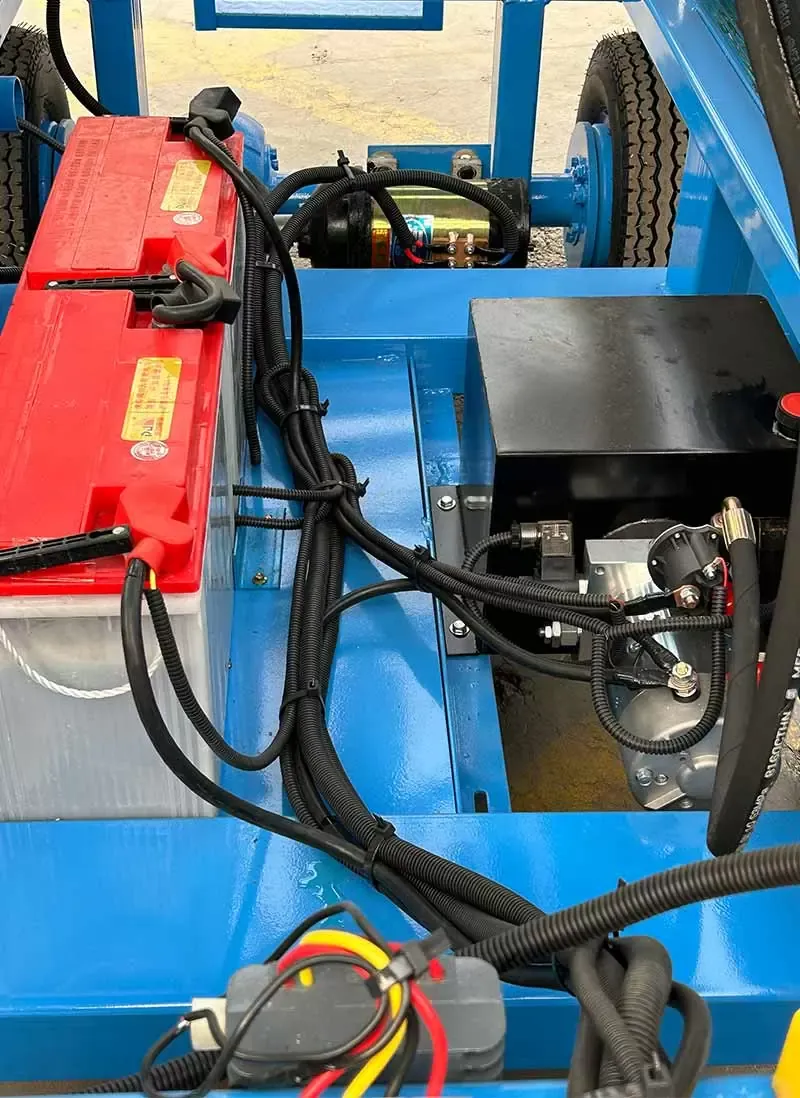

Normal power：Alternating Current 220V/380V. It can be equipped with DC and diesel power or both. We also can customize for you according to your local voltage.
Lifting speed：4-6m/min.
Platform load：300-2000kg.
Extendable platform：0-900mm，load 113kg.

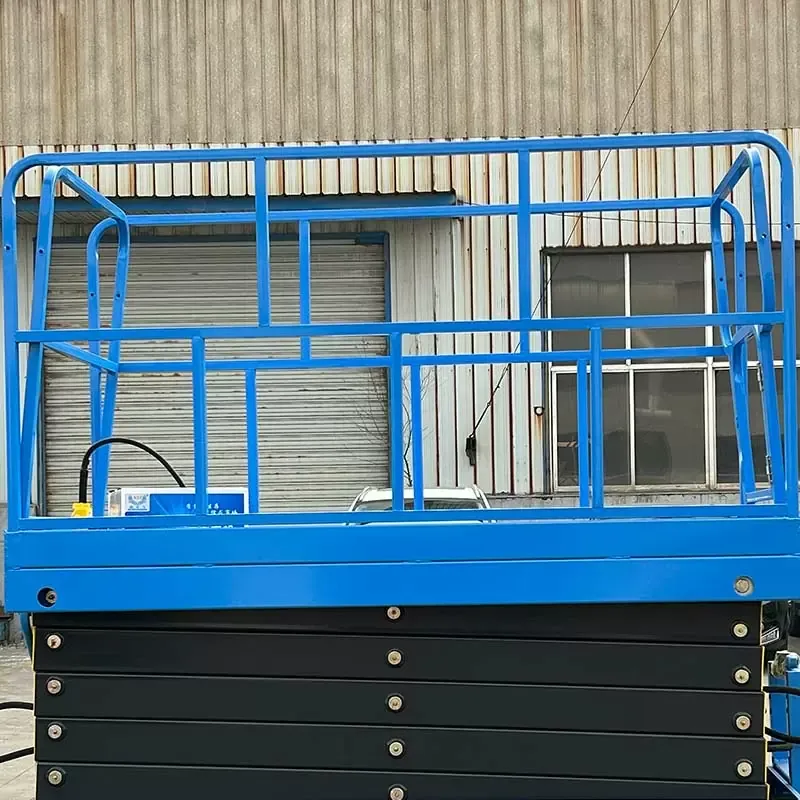

Guardrail：removable，height 1.1meter
Material：Q235 Carbon Steel.

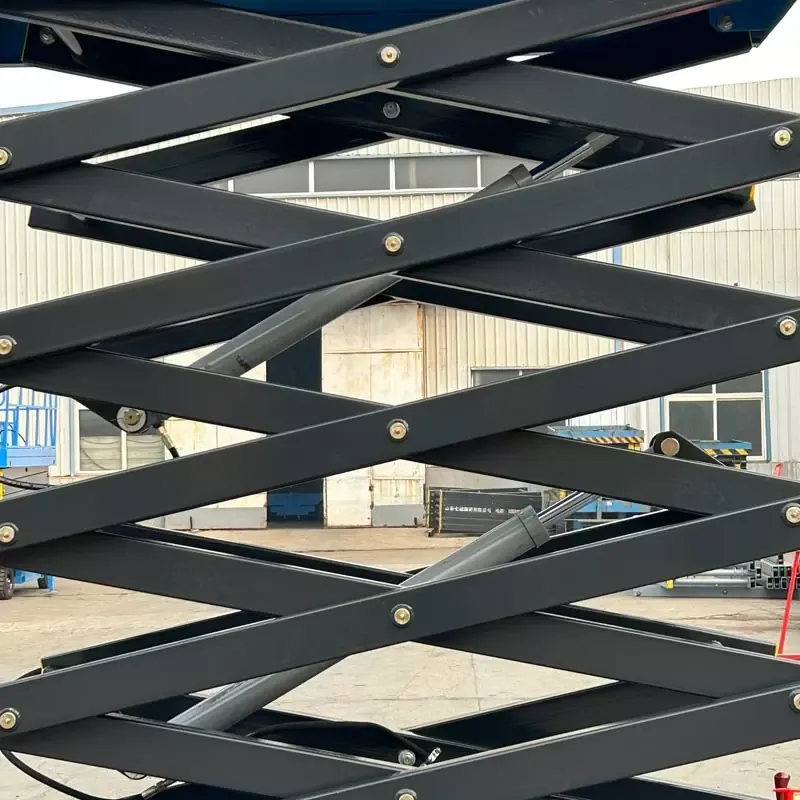

Shaft Pin：butter nozzle for grease maintenance
Tubing groove: prevents oil tubing winding
Tires: normal pneumatic tires, can be customized solid tires.
| Model | Platform size(mm) | Load capacity(kg) | Max. Platform Height(m) | Max. Working Height(m) | Overall dimensions(mm) | Machine weight(kg) |
| CY0.5-4 | 2100*830 | 500 | 4 | 6 | 2250*950*1100 | 800 |
| CY0.5-6 | 2100*830 | 500 | 6 | 8 | 2250*950*1200 | 880 |
| CY0.5-7 | 2100*830 | 500 | 6.8 | 8.8 | 2250*950*1200 | 970 |
| CY0.5-8 | 2100*930 | 500 | 8 | 10 | 2250*1060*1380 | 1050 |
| CY0.5-9 | 2100*930 | 500 | 9 | 11 | 2250*1060*1500 | 1165 |
| CY0.5-10 | 2100*1230 | 500 | 10 | 12 | 2250*1350*1530 | 1360 |
| CY0.3-11 | 2100*1230 | 300 | 11 | 13 | 2250*1350*1650 | 1400 |
| CY0.5-12 | 2550*1530 | 500 | 12 | 14 | 2796*1670*1750 | 2260 |
| CY0.5-14 | 2812*1530 | 500 | 14 | 16 | 3067*1730*1810 | 2486 |
| CY0.3-16 | 2812*1600 | 300 | 16 | 18 | 3067*1810*2080 | 3063 |
| CY0.3-18 | 3070*1600 | 300 | 18 | 20 | 3321*1810*2080 | 3900 |
