Crawler self propelled scissor lifts can work without being limited by the road conditions. It covers 6m to 12m height. This kind of scissor lift is perfectly suitable for bad road conditions, such as muddy, snowy, sandy road. With stable and secure structure, it is widely used for the wild jungle,the prairie, the field and etc.
PRODUCT DESCRIPTION

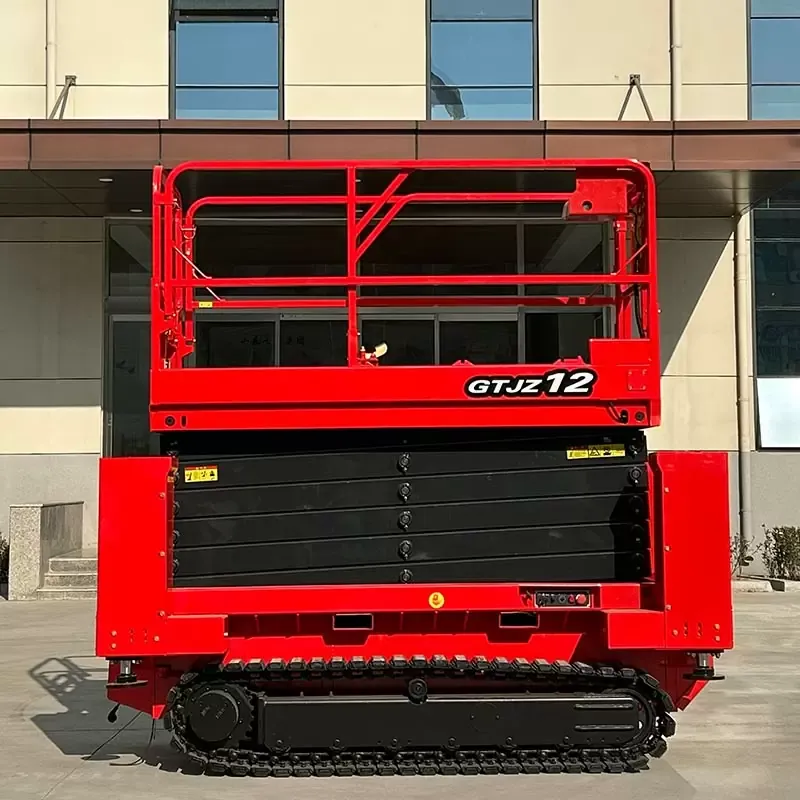

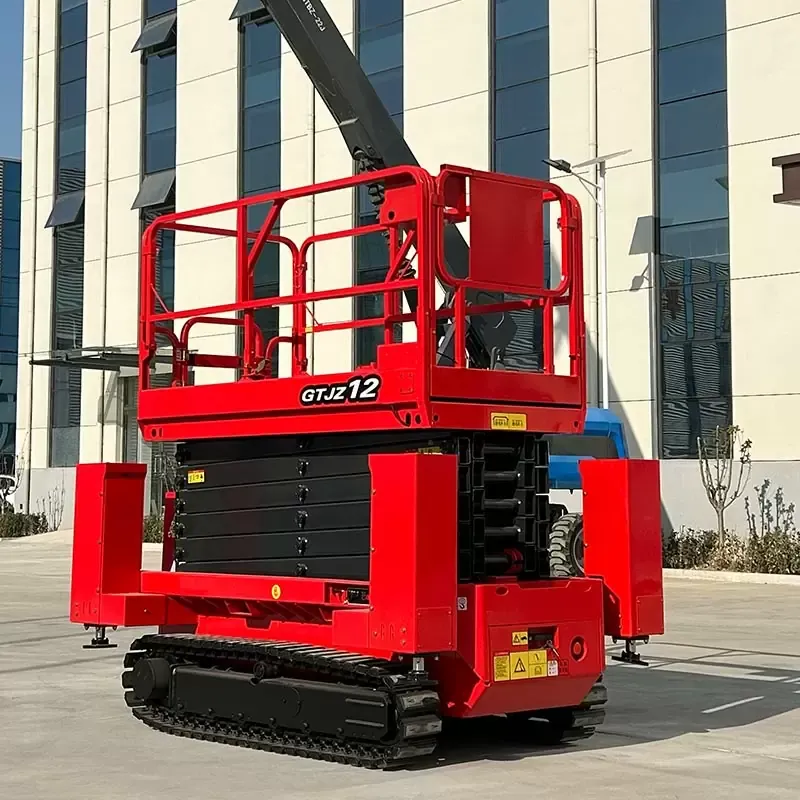

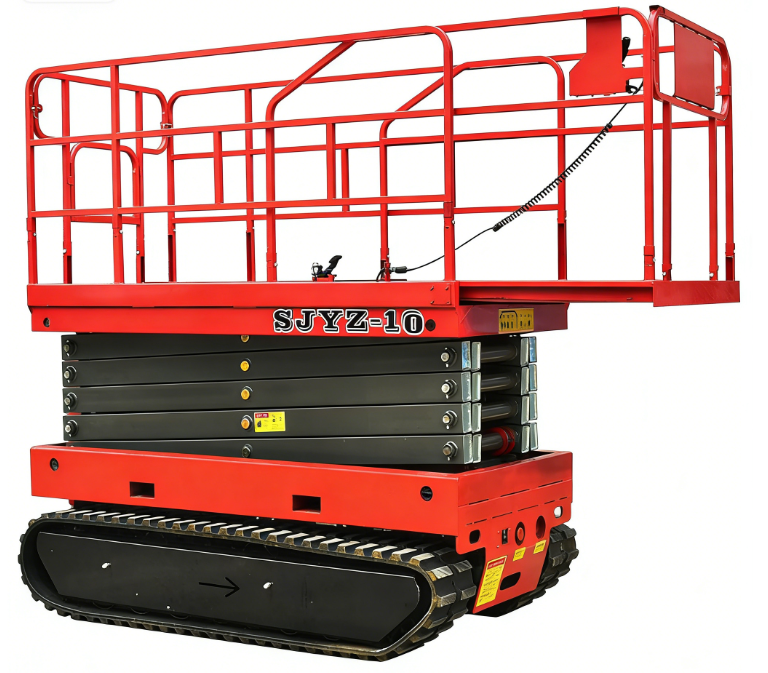

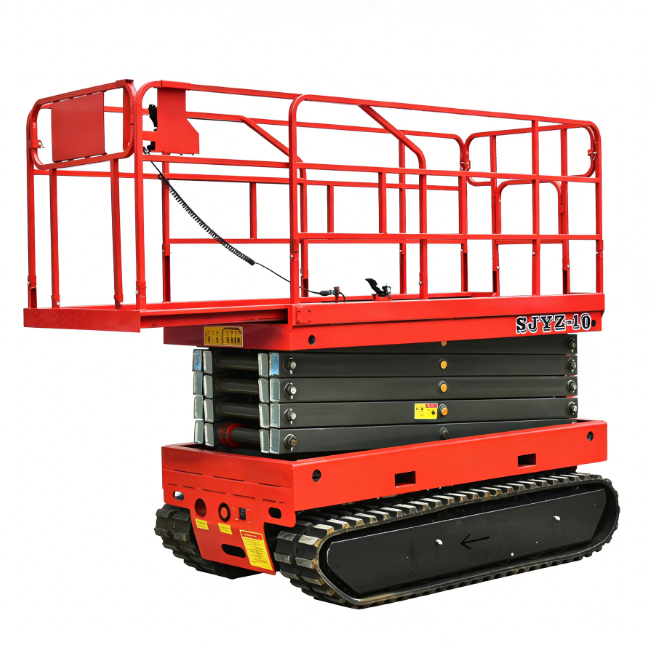

Self propelled Crawler scissor lifts can work without being limited by the road conditions. It covers 6m to 12m height. This kind of scissor lift is perfectly suitable for bad road conditions, such as muddy, snowy, sandy road. With stable and secure structure, it is widely used for the wild jungle,the prairie, the field and etc.
PRODUCT CUSTOMIZATION
We can customize products according to your requirements to make products more in line with your needs. Like color, brand, logo, nameplate and so on.
PRODUCT DETAILS

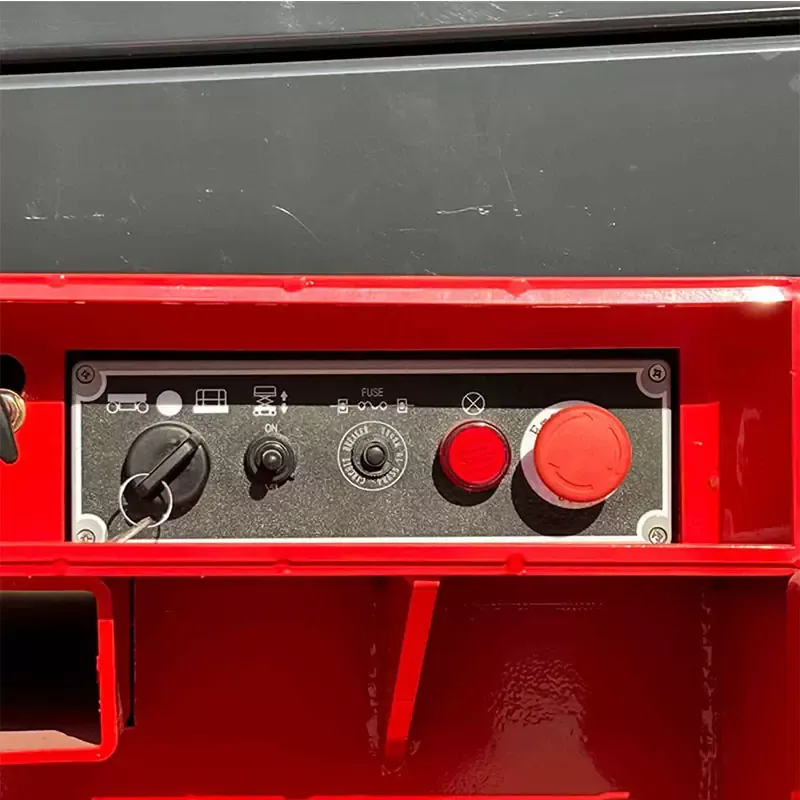

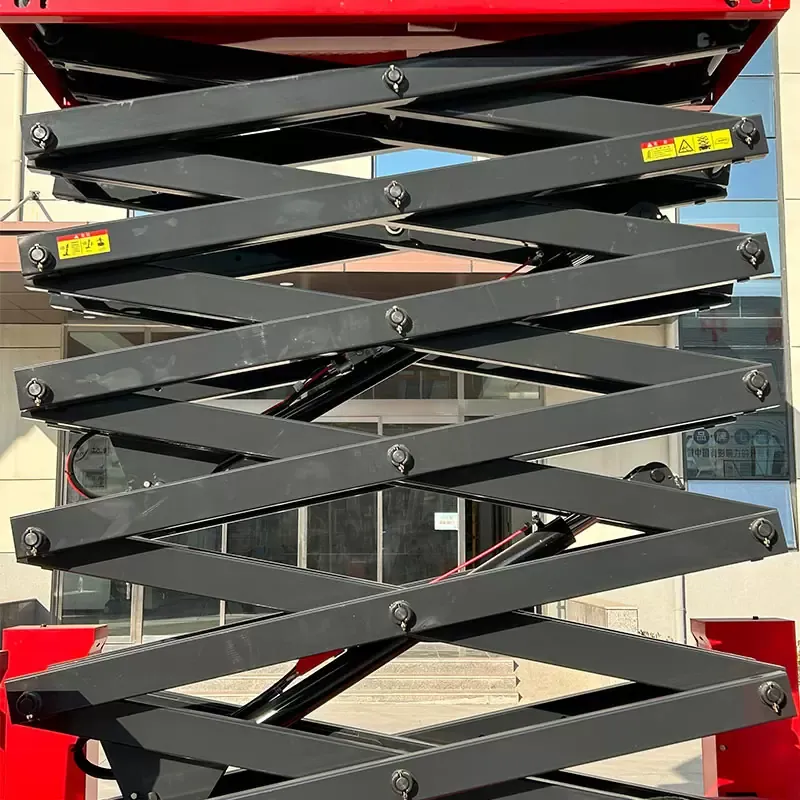

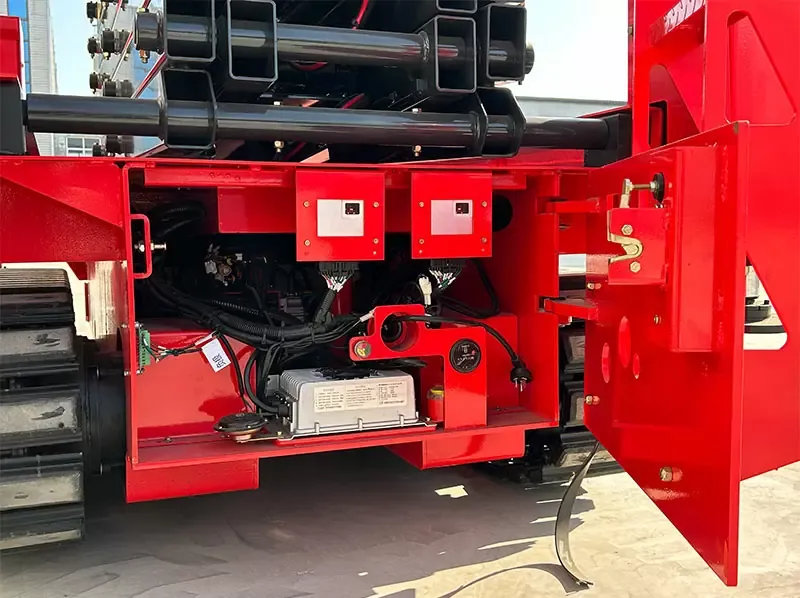

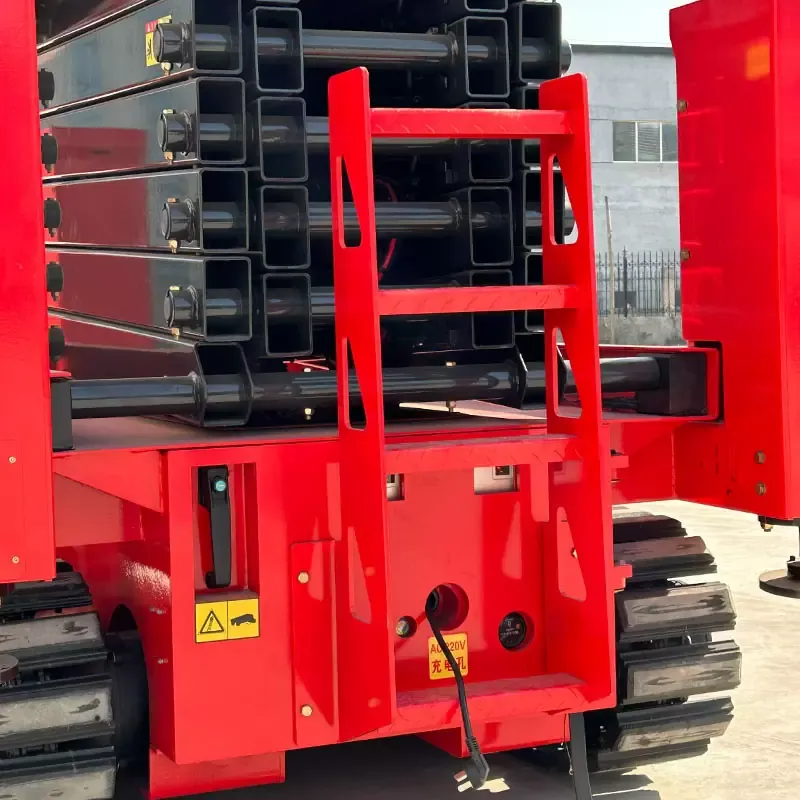

Self propelled crawler scissor lift uses whole electrophoresis. The shaft pin is maintenance-free salt bath nitriding treatment. The scissor lift equips with protective system, includes overload protection, pit protection, inclined protection, emergency descent system,emergency stop button and secondary descent system.It uses the high-quality crawler brand, ensure the long using time and running stability. Also can equip with one-key leveling to ensure that the equipment can work on a horizontal surface
Parameters
| Parameters | LD0.23-06 | LD0.32-08 | LD0.32-10 | LD0.32-12 |
| Max. lifting height | 6m | 8m | 10m | 12m |
| Max. working height | 7.05m | 9.05m | 11.05m | 13.05m |
| Max. loading capacity | 230kg | 320kg | 320kg | 320kg |
| Loading capacity of extension platform | 113kg | 113kg | 113kg | 113kg |
| Platform size | 1.669×0.745m | 2.271×1.11m | 2.271×1.11m | 2.271×1.11m |
| Platform extension size | 0.9m | 0.9m | 0.9m | 0.9m |
| Min. ground clearance(Close/Open) | 0 | 0 | 0 | 0 |
| Wheelbase | N/A | N/A | N/A | N/A |
| Min. turning radius（Outer wheel / Inner wheel） | 0 | 0 | 0 | 0 |
| Lifting motor | 48V/1.6KW | 48V/4.5KW | 48V/4.5KW | 48V/4.5KW |
| Ground speed(Close) | 1.8Km/h | 1.8Km/h | 1.8Km/h | 1.8Km/h |
| Ground speed(Open) | 0 | 0 | 0 | 0 |
| Lifting speed | 84/38sec | 84/38sec | 84/38sec | 84/38sec |
| Battery | 4×12V | 8×12V | 8×12V | 8×12V |
| Max. gradeability | 30% | 30% | 30% | 30% |
| Max. allowable working angle | 1.5°-3° | 1.5°-3° | 1.5°-3° | 1.5°-3° |
| Overall size(Folding guardrail) | 1.97×1.21×1.738m | 2.528×1.39×1.91m | 2.528×1.39×2.41m | 2.731×1.661×2.164m |
| Overall size(Unfolded guardrail) | 1.97×1.21×2.018m | 2.528×1.39×2.44m | 2.528×1.39×2.571m | 2.731×1.661×2.694m |
| Overall weight | 1620kg | 3150kg | 3200kg | 3700kg |
